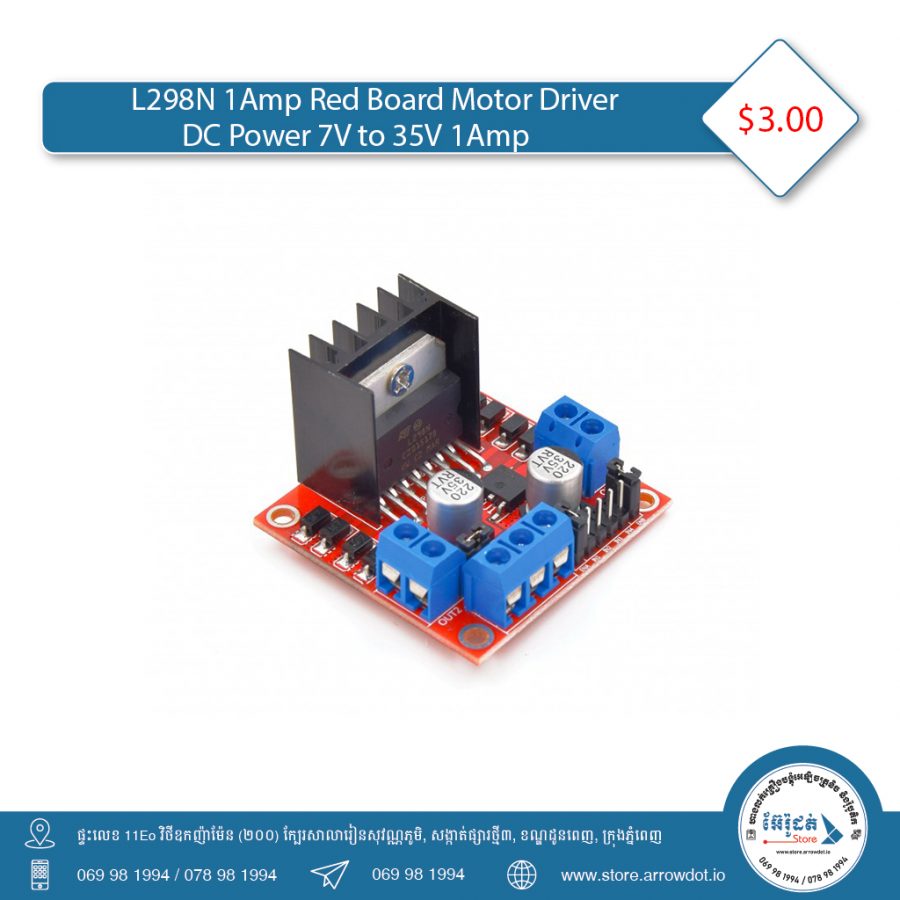

L298N Motor Driver Module DC7-35V

$3.00$3.50

Clear

Description

L298N Motor Driver Module DC7-35V with Heat Shrink Cooling

L298N Stepper Motor Driver Board Red – Kuongshun Electronic Shop

Illustration of L298N Dual H Bridge Motor Driver. | Download Scientific  Diagram

Description:

Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Storage temperature: -20 to +135
Max power: 25W
Weight: 30g
Size: 43 x 43 x 27mm

Note:

This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4

Additional information

L298N

Red Board 1A, Green Board 2A
