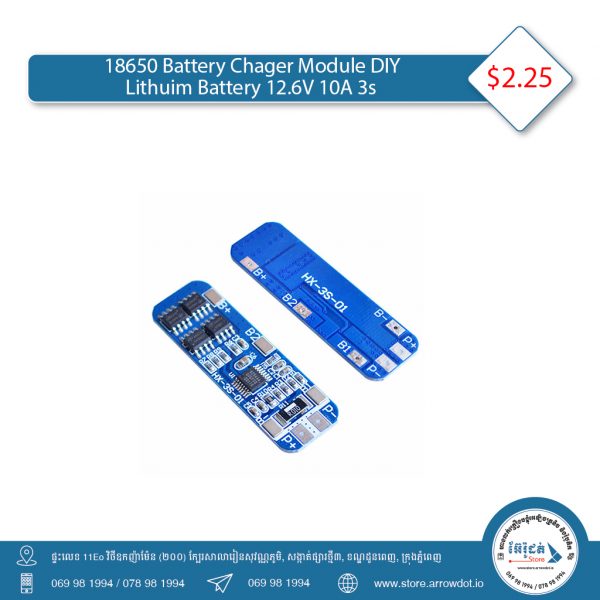

Specifications:
Charge voltage range: 12.6-13V
Overcharge voltage range: 4.25-4.35v ± 0.05v
Overpressure voltage range: 2.3-3.0v ± 0.05v
Size: 53 * 17 * 4mm
Maximum operating current: 6-8A
Maximum instantaneous current: 10-13A
Operating temperature: -40 — +50 ℃
Storage conditions: -40– +80 ℃
| 3s 12.6V | 10A V1, 10A V2 |
|---|
The CNC Shield v4 is made for the control of 3D printers, milling and engraving machines. This version of the shield has 1 motor driver less than its predecessor, but is more compact and has room for an Arduino Nano. This board has 3 sockets for the installation of stepper motor drivers such as the A4988. Only 2 channels per motor are required to control this motor. There is also a connection for 2 end-stop switches per motor.
The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
The A4988 is a complete Microstepping Motor Driver with built-in translator for easy operation. The driver has a maximum output capacity of 35 V and ± 2 A. It can operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes.
