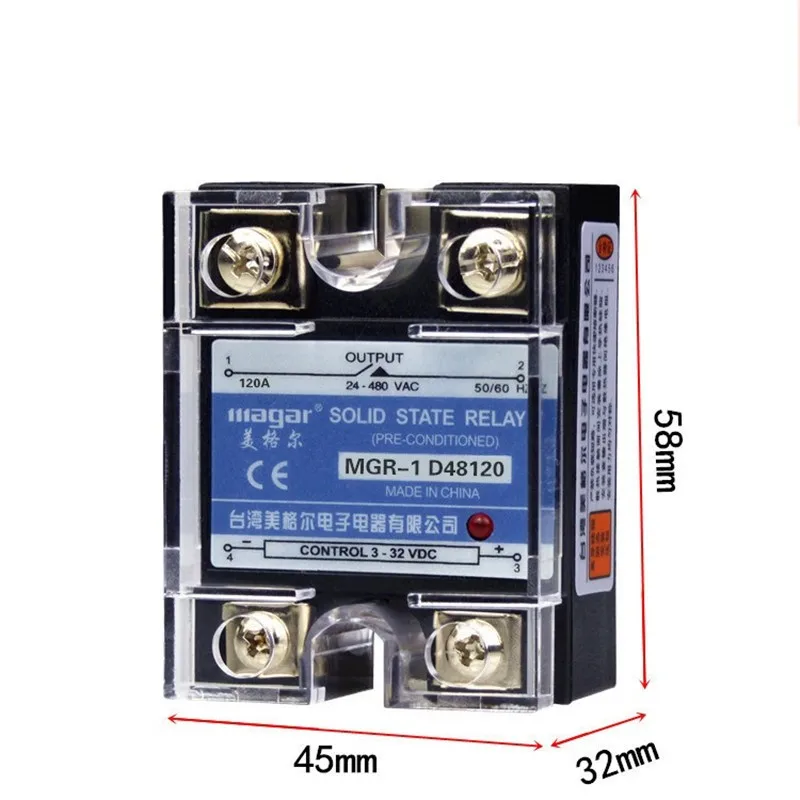

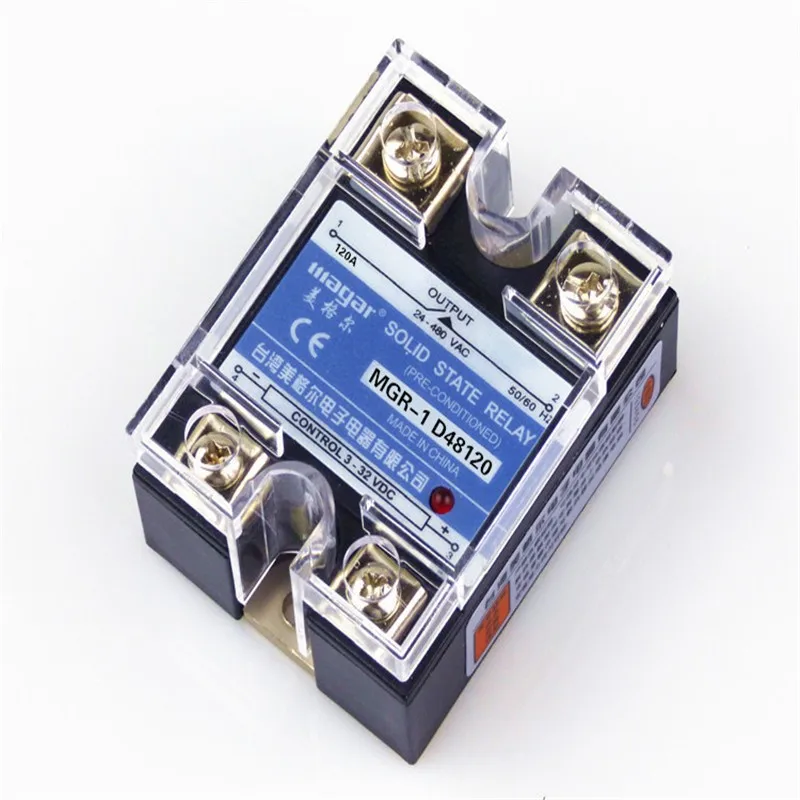

Solid State Relay SSR MGR-1 Controller Voltage DC 3-34V Switch Output 24-480V

$4.00 – $15.00

Add to wishlist
SKU: N/A Categories: , , ,

Description

Single Phase Solid State Relay SSR MGR-1 Controller Voltage DC 3-34V Switch Output 24-480V

Solid state relay (SSR) abbreviations electronic non-contact switch, the main characteristics of tiny control input signal, the direct drive high current load. Product is used widely, advantages: long life, non-contact, no spark, no noise, no electromagnetic interference, fast switching speed, strong anti-interference ability, reliable operation, and small size, resistant to vibration, explosion-proof, anti-corrosion, can compatible with TTL, DTL, HTL integrated circuit.

Insufficient at present is mainly the output contact not like contactor which yao, only one group; Over 40 a additional load due to the pressure drop, temperature rise quickly, it is important to note that the cooling, you also can choose special solid heat

description : 120A single-phase solid state relay
control: DC control AC (DC – AC)
The load current : 15-80A
load voltage:24 – 480 v/AC
The control voltage : 3-32 v/DC
control current : DC: 3-25 ma AC: 12 ma

Additional information

Select Current

D4810 – 10A, D4820 – 20A, D4825 – 25A, D4840 – 40A, D4850 – 50A, D4860 – 60A, D4880 – 80A
